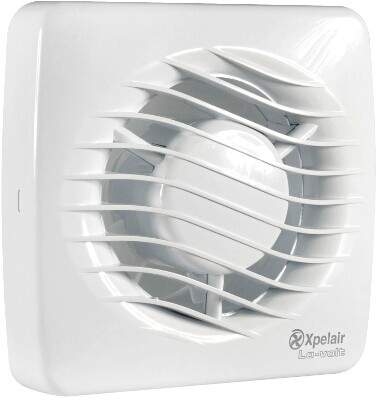

Xpelair LV100 > Extractor Fan With Humidistat, Timer & Pull Cord (100mm, 12v).

Product Details

Low voltage extractor fan with humidistat, timer and pull cord (12v). Size 100mm air outlet. Axial extract fan with remote transformer

• Axial extractor fans.
• Operated by remote switch, humidistat and pull cord.
• Run on timer.

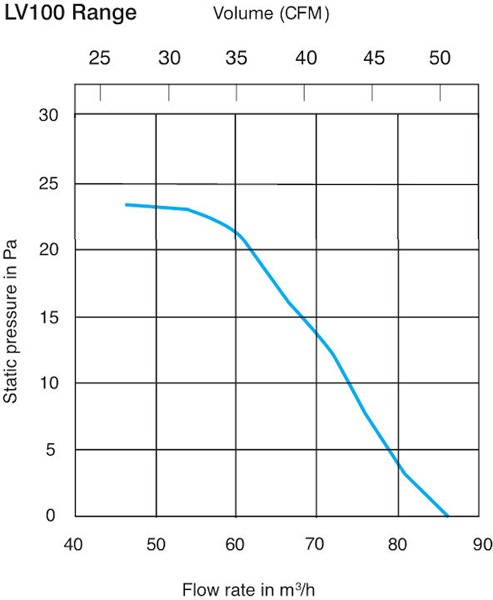

• Maximum fan performance 24 l/s.
• Lubricated for life motor.
• Thermal cut-out protection.
• Remote transformer included (12v).
• Universal mounting kit included.
• Air operated back draught shutter.
• Designed for walls or ceilings installation.
• Safety Extra Low Voltage (SELV).
• Suitable for wall, ceiling or window mounting (in single glazing up to 6mm).
• Designed to be installed directly over the splash area zone 1.

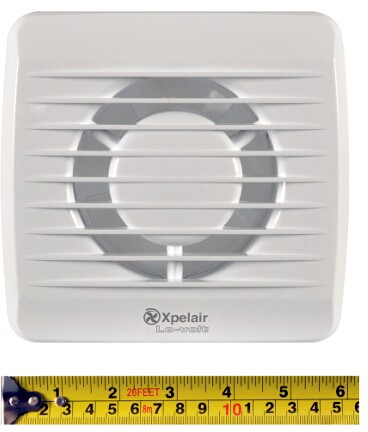

• Fan outlet size: 100mm (4").
• Colour: White.
• Operation Speeds: 1.
• 2 Year guarantee.
• Conforms to UK Building Regulations mechanical ventilation for toilets and bathrooms.

Product Code: XA-LV100HTAP

Xpelair LV100 fans are 12V Safety Extra Low Voltage (SELV) 100mm (4") axial extractor fans, offering complete peace of mind. These fans are specifically designed to be installed directly over the splash area zone 1 in complete safety, with the SELV transformer sited out of reach of any person using the bath or shower. All models come complete with a universal mounting kit and are suitable for wall, ceiling or window mounting (in single glazing up to 6mm) applications. The kit includes an air operated back draught shutter and all models are supplied with a 12V SELV transformer. Control options include integral Pullcord and timer. Humidistat and PIR options offer automatic control. The LV100 range conforms to UK Building Regulations mechanical ventilation for toilets and bathrooms.
