Product Details

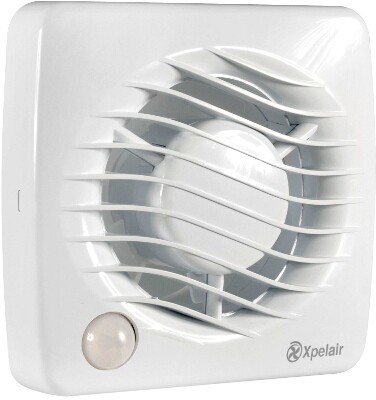

Extractor fan with PIR sensor. Size 100mm air outlet.
- Axial extractor fans.
- Operated by PIR sensor switch.

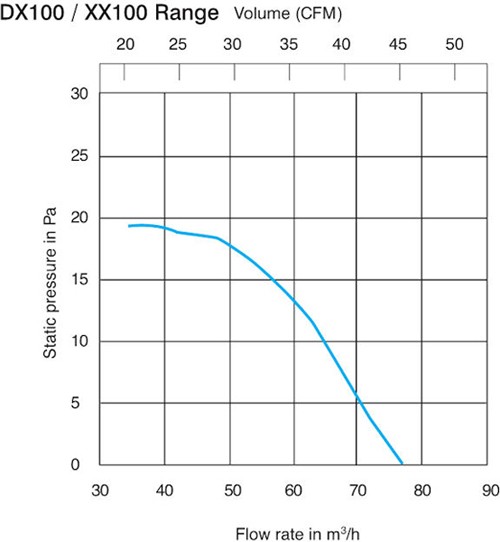

- Maximum fan performance 21 l/s.
- Lubricated for life motor.
- Thermal cut-out protection.
- Clip-off front cover for ease of cleaning.

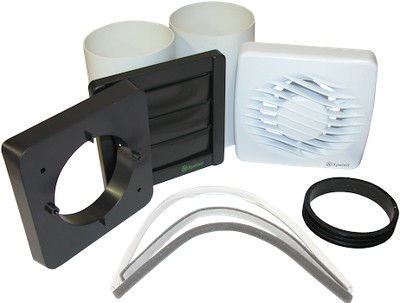

- Universal mounting kit included: comprising of a wall tube, gasket x2, outer grille and skirt moulding for window mounting in single glazing up to 6mm.
- Suitable for wall or ceiling mounting.
- Air operated back draught shutter, outer grille and ducting included.
- Designed for bathrooms, shower rooms and toilets, including zones 1 and 2..
- Fan outlet size: 100mm (4").
- Colour: White.
- Operation Speeds: 1.
- 2 Year Xpelair guarantee.
- Conforms to UK Building Regulations mechanical ventilation for toilets and bathrooms.
Product Code: XA-DX100PIR
Additional documents are available:
Xpelair Axial Wall & Ceiling Fans (pdf)
Xpelair Axial Inline Shower Fans (pdf)
For over 50 years, the Xpelair name has been synonymous with extractor fans. The Xpelair Axial range of stylish, compact and easy to install single speed fans are suitable for a wide range of domestic applications including bathrooms, shower rooms and toilets. Also suitable for commercial applications such as hotel bathrooms, office toilets and other small rooms. All are BEAB approved.
