Product Details

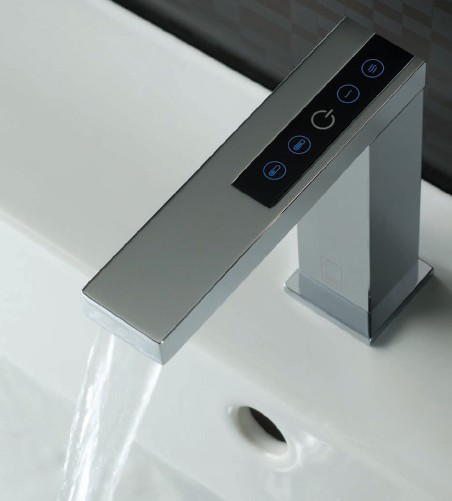

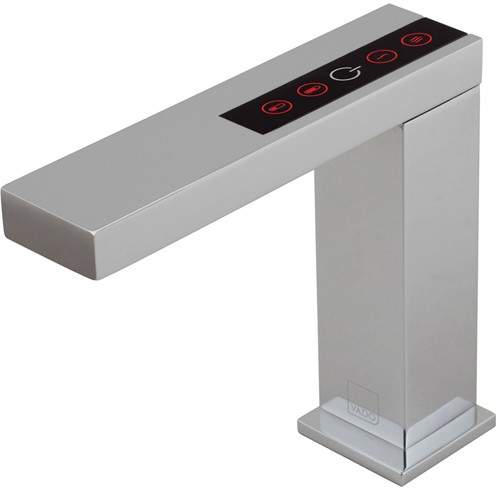

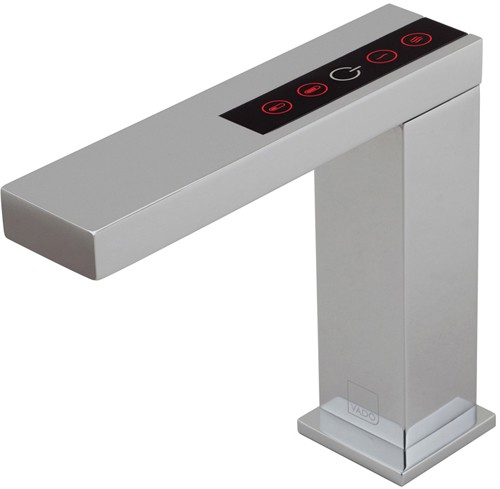

Digital basin tap with concealed control unit and touch controls (with LED back lights).
- Touch control lighting changes colour with water temperature, from blue (cold) to purple and then red (hot).

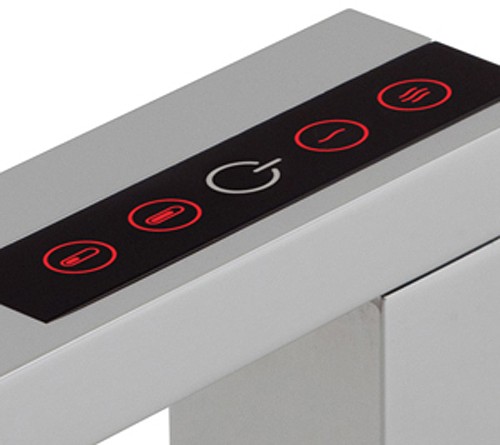

- Touch controls: 7 temperature settings, 3 flow rate settings and on/off control.
- Automatic shut down: If no controls are touched for 15 minutes this tap will automatically switch off.
- Can be deck or basin mounted. Requires a tap hole over 34mm wide when basin mounted.
- Suitable for combination boilers, gravity fed systems, mains water systems.
- Pipe connections: 15mm (1/2").

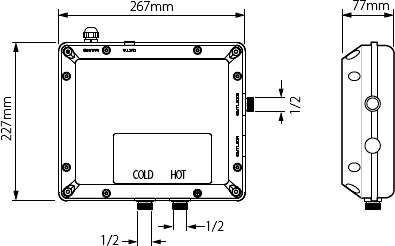

- Control unit can be mounted horizontally or vertically in a suitably dry place (under the basin).
- All electrical connections must be carried out by a qualified electrician.
- Control unit requires a 3 to 5 amp RCD electrical connection and earth (connected outside of the bathroom).
- Electrical connections: 220 - 240V (AC/50Hz).
- Maximum power rating: 16 Watt.
- Water pressure required: 1 to 5 bar.
- 12 Year Guarantee: Vado guarantee their Identity range for 12 years.
See also:
Installation instructions Product Code: VA-IDE100SQ
The amazing Vado Identity range of taps and shower valves feature futuristic touch controls, concealed mixers, and LED lighting to add a whole new dimension to your bathroom. Since 1993, Vado International have been globally recognised for their high quality bathroom products.
12 Year guarantee: Vado guarantee their Identity range for 12 years.
