Product Details

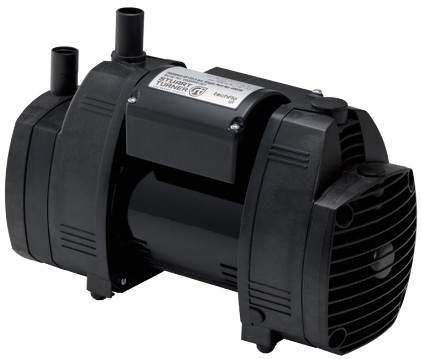

Single flow standard centrifugal pump for use with positive head systems. Includes flexible hoses. 1.3 bar.
- Single flow pump to boost a single water feed, either hot or cold.
- Positive head: Suitable for positive head conditions only with a minimum gravity flow of 1.0 litres per minute.
- Designed to improve water supplies to single taps or to pump blended water from a shower mixer.
- Anti vibration feet.
- Aluminium body, advanced multi stage impeller and diffuser for low running costs, high performance.
- Whisper quiet operation (48db).
- Includes 22mm anti vibration flexible hoses (200mm) with built in isolation valves (push fit).
- Flow switch: Fully automatic. Gravity flow required to start pump.
- Flow switch sensitivity: Approx 1.0 Litres per min.
- Maximum flow: 33 litres per minute maximum.
- This pump offers the equivalent of raising the cold water cistern 11 metres above its current position.

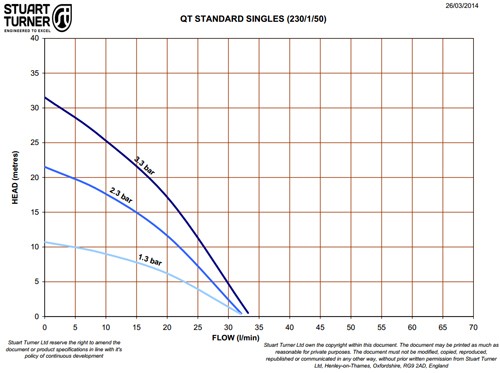

- Water pressure: 1.3 bar.
- All electrical connections should be carried out by a qualified electrician.
- WRAS approved.
- 3 Year guarantee: Techflow from Stuart Turner guarantee this pump for 3 years.
- Positive Head Systems: A positive head system exists when sufficient pressure is available under gravity to provide a flow at the outlet. Typically a positive head condition exists where the flow from the outlet is more than 1 litre/min.
Product Code: ST-49077-NEW
The Techflow comprehensive range of pumps and accessories will deliver it. All Techflow products feature innovative design, cutting edge technology and are meticulously manufactured to BS EN ISO 19001 standards. All Techflow products are independently tested to ensure they conform to all the relevant standards and are CE Compliant, BS EN 60335 electrical household appliance compliant and are manufactured using WRAS compliant materials. Techflow products are designed for ease of installation and include concise and easy to follow installation instructions.
