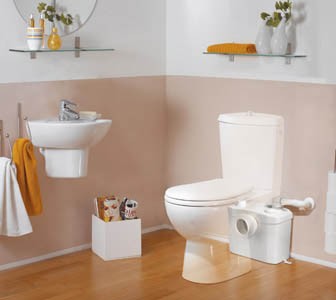

Saniflow Sanitop's powerful macerator enables the addition of a WC plus a wash basin. Sanitop pumps vertically to 5m or horizontally to 100m or a lesser combination of both. Add a cloakroom, washroom or toilet in a home extension, in a basement or loft conversion, or as part of any home improvement where conventional large bore pipework is impractical.
Motor: induction motor (no carbon brushes or gears to wear out). Tested over 30,000 cycles.
Watts (consumption): 550w
Electrical supply: 220-240V 50Hz
Flow rate at max head l/min: 68
Discharge horizontally to 100 metres or vertically to 5 metres
Gravity fall on ‘horizontal’ installations: 1:100
Discharge Pipe Diameter: 22mm
Construction Materials: Polypropylene, C.R.P., stainless steel, Neoprene
Type of WC Pan:
Short spigot 100mm HO outlet (BS EN 33/37)
Motor RPM: 2800 RPM
Normal Running Time WC:
10 - 20 secs subject to installation piperun

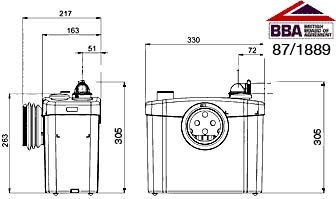

Dimensions (excl. cowl):
330W x 305 O/H x 180D (requires 190mm behind spigot)
Note: Designed to fit BS EN 33/37 WC pans. As close coupled cistern dimensions vary, it may be necessary, with certain designs, to utilise a spacer between cistern and wall
Sanitaryware not included.
Product Code: SF-SANITOP
Saniflo macerator pumping systems enable you to add facilities almost anywhere. They're easy, quick and economic to install and you can add a cloakroom or complete bathroom - even a kitchen or utility room!
Saniflo macerator come with a 2 year manufacturers guarantee for domestic use.
For a product brochure, and technical details of these products visit www.saniflo.co.uk
