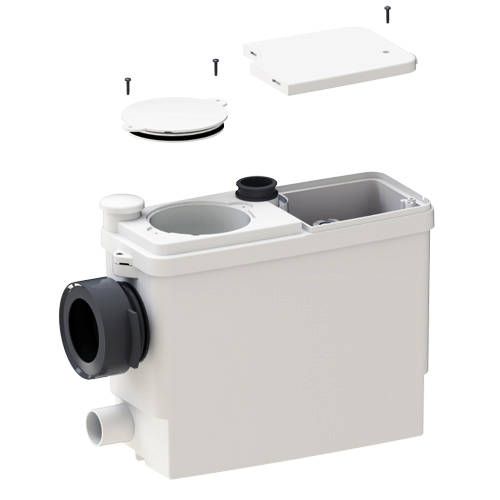

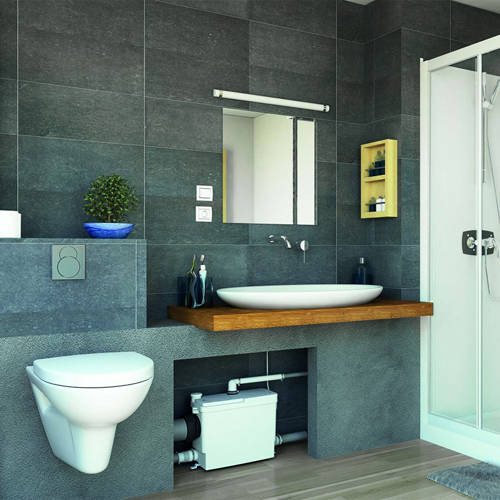

Saniflo Sanipack small bore macerator pump for use with back-to-wall and wall hung sanitary ware. The pump can be concealed behind a wall panel. The stylish way to add a washroom, shower unit or even a complete en suite shower room or bathroom in a basement or loft extension - or in any home improvement where conventional large bore pipework is impractical. Saniflo Sanipack will take waste and water from a complete shower room
Motor: induction motor (no carbon brushes or gears to wear out). Tested over 30,000 cycles.
Watts (consumption): 400w
Electrical supply: 220-240V 50Hz
Flow rate at max head l/min: 40
Discharge horizontally to 40 metres or vertically to 4 metres
Gravity fall on ‘horizontal’ installations: 1:100
Discharge Pipe Diameter: 22mm
Construction Materials: Polypropylene, C.R.P., stainless steel, Neoprene
Type of WC Pan: (not included)
Short spigot 100mm HO outlet (BS EN 33/38)
Motor RPM: 2800 RPM
Normal Running Time WC:
10 - 20 secs approx or as required, to discharge shower or basin

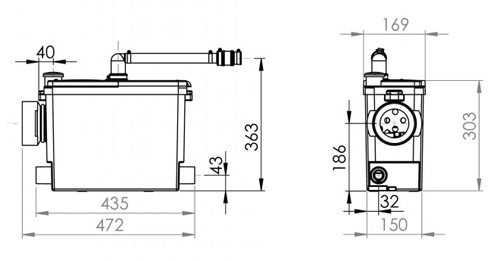

Dimensions (excl. cowl):
435W x 365 O/H x 130D
Sanitaryware not included.
Product Code: SF-SANIPACK
Saniflo macerator pumping systems enable you to add facilities almost anywhere. They're easy, quick and economic to install and you can add a cloakroom or complete bathroom - even a kitchen or utility room!
Saniflo macerator come with a 2 year manufacturers guarantee for domestic use.
For a product brochure, and technical details of these products visit www.saniflo.co.uk
