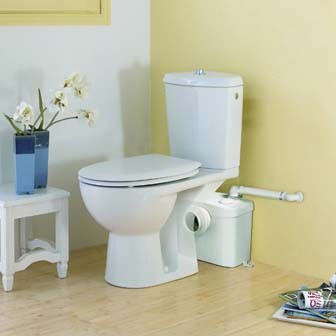

Saniflo small bore macerator pump for use with a single WC. The easy way to add a loo in a basement or loft extension - or in any home improvement where conventional large bore pipework is impractical. Works with any style of sanitaryware.
Motor: induction motor (no carbon brushes or gears to wear out). Tested over 30,000 cycles.
Watts (consumption): 550w
Electrical supply: 220-240V 50Hz
Flow rate at max head l/min: 44
Discharge: horizontally to 50 metres or vertically to 4 metres
Gravity fall on ‘horizontal’ installations: 1/100
Discharge Pipe Diameter: 22mm
Construction Materials: Polypropylene, C.R.P., stainless steel, Neoprene
Type of WC Pan: (not included)
Short spigot 100mm HO outlet (BS EN 33/37)
Motor RPM: 2800 RPM
Normal Running Time WC:
10 - 20 secs subject to installation pipe run

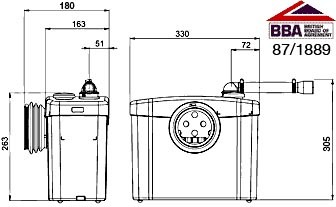

Dimensions:
w330mm x h305mm x d180mm (requires 190mm behind spigot)
Sanitaryware not included.
Product Code: SF-SANIFLO
Saniflo macerator pumping systems enable you to add facilities almost anywhere. They're easy, quick and economic to install and you can add a cloakroom or complete bathroom - even a kitchen or utility room!
Saniflo macerator come with a 2 year manufacturers guarantee for domestic use.
For a product brochure, and technical details of these products visit www.saniflo.co.uk
