Product Details

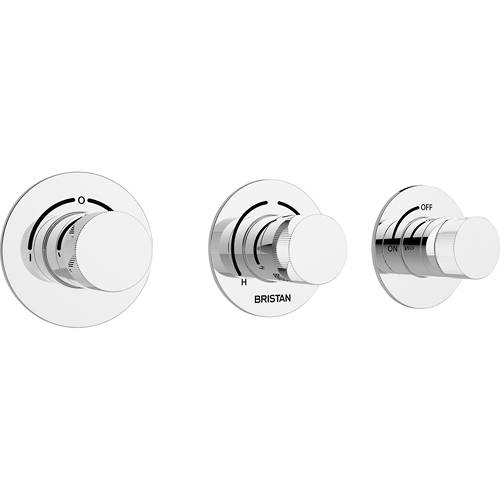

Bristan Orb concealed thermostatic shower valve in chrome with 3 outlets, dual controls and diverter.
- The feeling of a bespoke bathroom design!
- Thermostatic for added safety (family safe).
- Easy to use controls.
- Supplied with wall outlet.
- Integral two outlet diverter and single stopcock (3-way).
- 2 x outlets can be used at the same time (with good pressure).
- Metal back plates and handles for added durability.
- Suitable for all plumbing systems (ideally balanced).

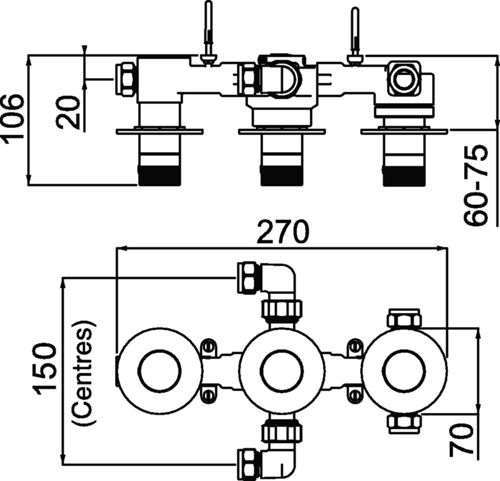

- This shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space.
- Fitting depth including plasterboard and tiles is 60mm - 75mm.
- Minimum cold water supply temperature is 4°c.
- Maximum hot water supply temperature is 80°c.
- Pre-set Outlet Temperature: 42°C.
- Fully serviceable from the front.
- Working pressures between 0.2 bar to 5 bar (max 10 bar).
- Inlet connection: 15mm.
- Outlet connection: 15mm.
- No of outlets: 3 (diverter and stopcock).
- No of handles: 3.
- Finish: Chrome (brass).
- WRAS approved.
- CE approved.
- Example image shown.
- Bristan guarantee: 5 Year guarantee.
Product Code: B-ORBSHC3DIVC
Stay ahead of the design curve with the Bristan Orb collection of showers. Their soft, organic curves result in a subtle look that has the feeling of a bespoke bathroom design.
At Bristan, they want to make things as easy as possible for their customers. That's why they design products that are easy to fit and use, and undergo rigorous quality testing to make sure they won't let you down. Bristan offer Award winning customer services, solid product guarantees mean you can have peace of mind that in the unlikely event something goes wrong it will be sorted easily for you with the minimum of hassle.
